Electrode Check

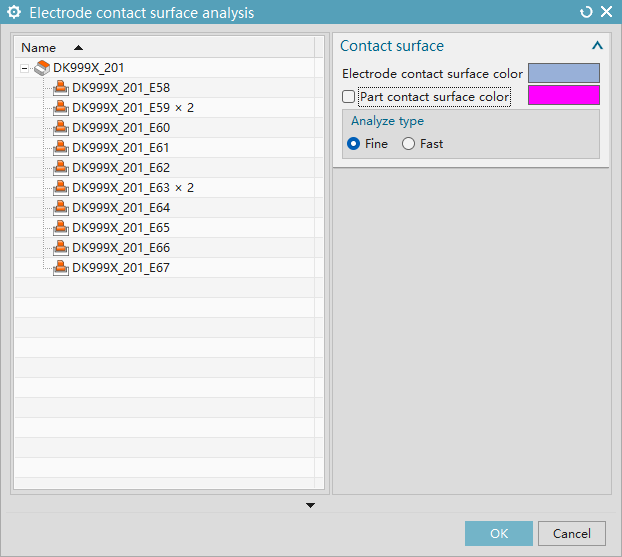

Electrode Contact Surface Analysis

• Electrode Contact Surface Analysis: Analyze the cavity surface (mold cavity side) of the electrode and the discharge surface of the workpiece
• Electrode Contact Surface Color: Display the color of the electrode’s cavity surface (supports system parameters to define default color ID)
• Part Contact Surface Color: Define whether to color the part’s contact surface (supports system parameters to define default color ID) Analysis Type: Select "Precision Priority" or "Speed Priority"
