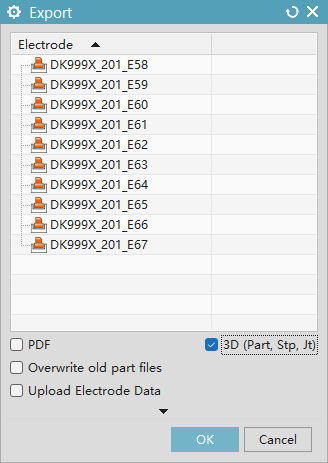

Electrode Export

• Export electrode-related 3D data and upload it to the automated system
• Convert to PDF: If checked, re-export the electrode drawing as a PDF after conversion and upload it to the automated system
• 3D: If 3D is checked, export (Part, stp, jt) files and upload them to the automated system
• Overwrite old Part files: Overwrite existing old Part files
• Single CAM Stp: Export to a separate folder in a format readable by other software for programming.
• Upload Electrode Data: Upload electrode data to the automated system; supports system parameter definition for default checking, and must be checked when using the system

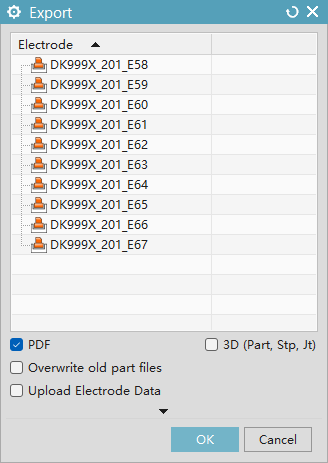

Electrode PDF Export

• Export electrode drawing as a PDF and upload it to the automated system
• Convert to PDF: If checked, re-export the electrode drawing as a PDF after conversion and upload it to the automated system
• 3D: If 3D is checked, export (Part, stp, jt) files and upload them to the automated system
• Overwrite old Part files: Overwrite existing old Part files
• Upload Electrode Data: Upload electrode data to the automated system; supports system parameter definition for default checking, and must be checked when using the system
