Electrode measure
Electrode Measurement Data

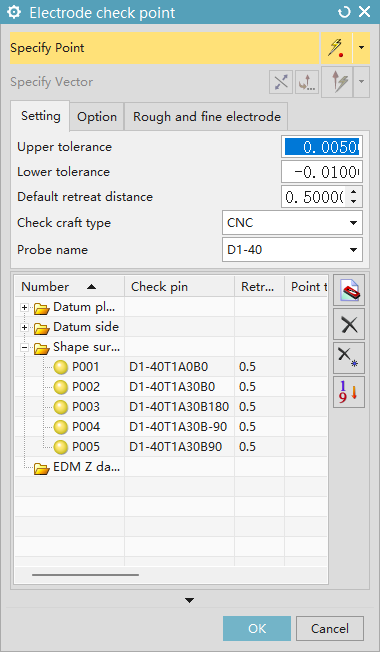

Electrode Inspection Points
- Upper Tolerance: Inspect the upper tolerance value; defaults to reading the electrode tolerance and supports temporary modification
- Lower Tolerance: Inspect the lower tolerance value; defaults to reading the electrode tolerance and supports temporary modification
- Default Retract Point Distance: Retract distance of the electrode feature; supports system settings to configure default values and allows temporary modification
- Inspection Process Type: CNC, WEDM
- Probe Name: Define the probe used for the electrode; supports system configuration of default probes and allows temporary modification
- Datum Plane: The datum plane must have four datum points
- Datum Edge: A single datum edge must have two datum points
- Feature Surface: Inspection points required for measuring the electrode feature
- Clear Feature Points: Delete all inspection points on the feature surface
- Delete Selected Points from List: Delete the selected points in the left-side list
- Delete Selected Points: Select and delete points in the graphics area
- Sort Feature Points: Reorder the points in the list according to their sequence

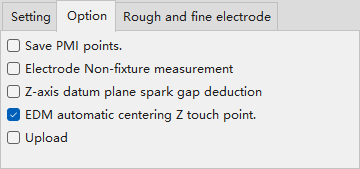

Options
- Save PMI Points: Save Product and Manufacturing Information (PMI) points in the 3D model
- Electrode Inspection Without Fixture: Use fixture-free inspection
- Spark Gap Adjustment for Z-Axis Datum Plane: Adjust the spark gap for the Z-axis datum plane of a single electrode
- EDM Auto-Centering Z-Axis Touch Point: Address scenarios where EDM auto-centering Z-axis touch points cannot be obtained
- Upload: Upload data to the automated system; supports system parameter definition for default checking, and must be checked when using the system

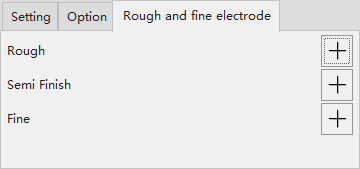

Roughing-Finishing Integrated Electrode
- Roughing: Select inspection points for roughing
- Semi-Finishing: Select inspection points for semi-finishing
- Finishing: Select inspection points for finishing

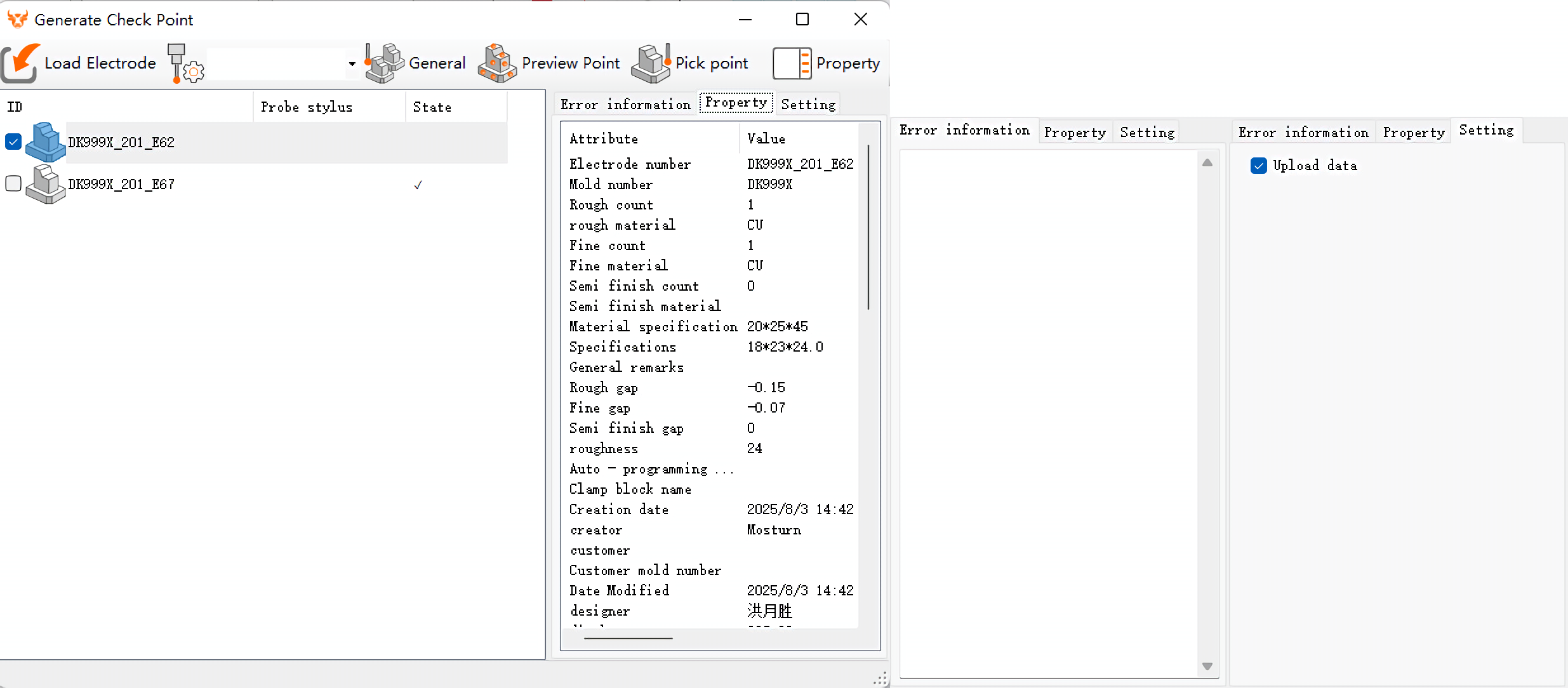

Batch Inspection Data
Applicable to: Batch loading of electrodes to export inspection data
- Load Electrodes: Manually load other electrode drawings
- Probe Assignment: Specify the probe name to be used for the electrode; defaults to automatically reading the system-configured probe name
- Batch Generate Points: Generate inspection points for batch electrodes
- Preview Points: View the generated inspection points
- Acquire Points: Generate inspection points for a single electrode
- Attributes: Display relevant information of the electrode
- Error Messages: Display error messages
- Upload Electrode Data: Upload electrode data to the automated system; supports system parameter definition for default checking, and must be checked when using the system
